No custom engineering cycle, no commissioning risk. These machines arrive configured and tested — plug them in and put them into production the same week.

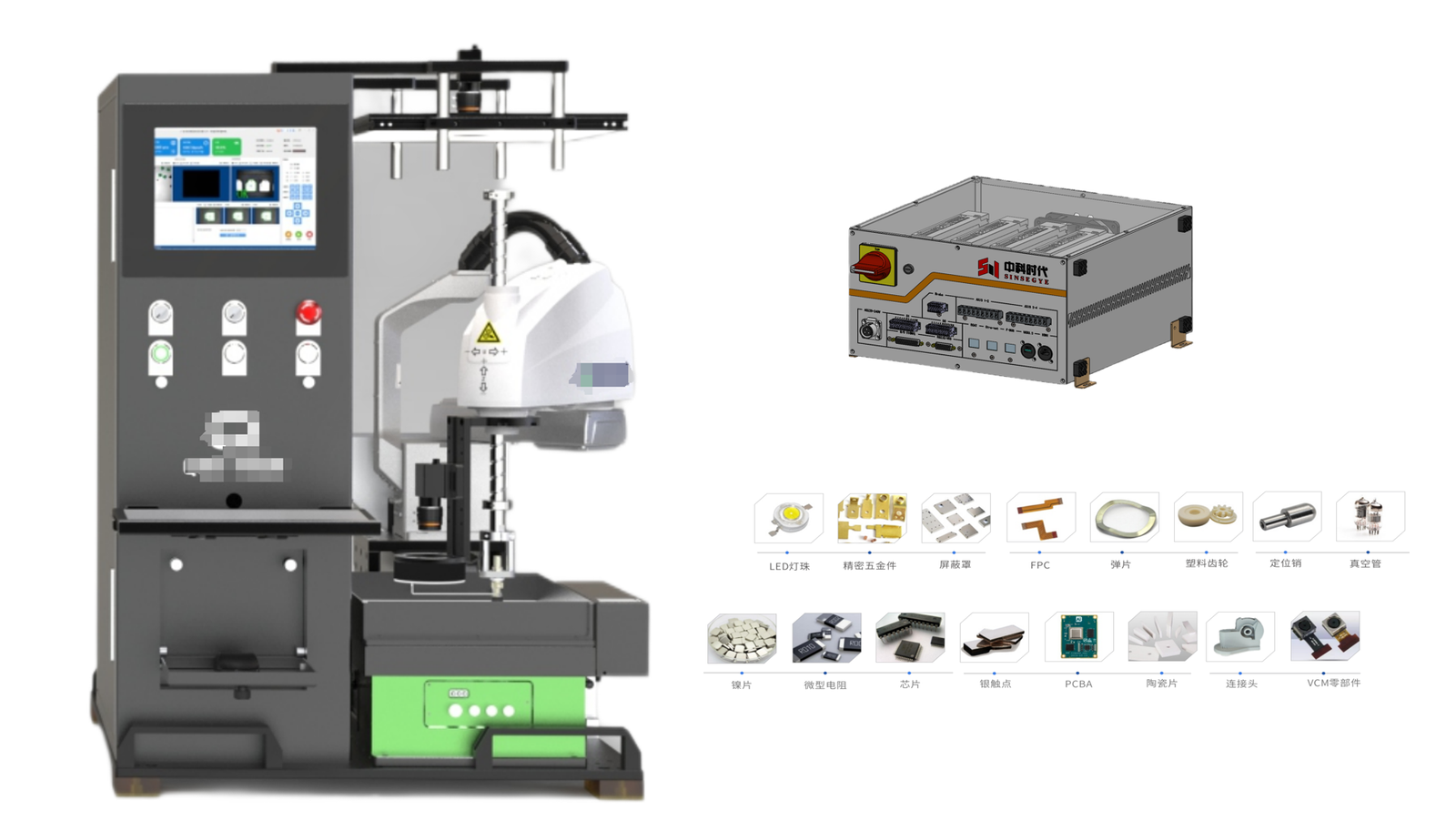

Vision-Control Integrated Tray Handling Machine
Product Introduction
The Vision-Control Integrated Tray Handling Machine is an advanced automated solution that combines machine vision and motion control into a single, seamless interface. Designed as a universal tray loader, it accurately picks and places a wide variety of small components—from LEDs and precision hardware to PCBs and microchips—into trays with high speed and precision. Its user-friendly design allows operators to master the system in just 15 minutes, making it an ideal choice for flexible, high-mix manufacturing environments.
Key Features
- Integrated Vision & Control: All-in-one interface for simple operation and quick onboarding (ready to use in 15 minutes).
- Seamless Internal Communication: Vision coordinates and machine signals interact internally without external communication risks.
- Multi-Level User Management: Configurable user permissions for convenient and secure system administration.
- Recipe Management: One-click product switching for fast changeovers between different components.
- Automatic Calibration: Guided calibration process ensures quick and accurate setup.
- Modular Software: Flexible software modules can be selected based on specific production requirements.
- Quick Data Access: One-key start/stop function with fast access to production data records.

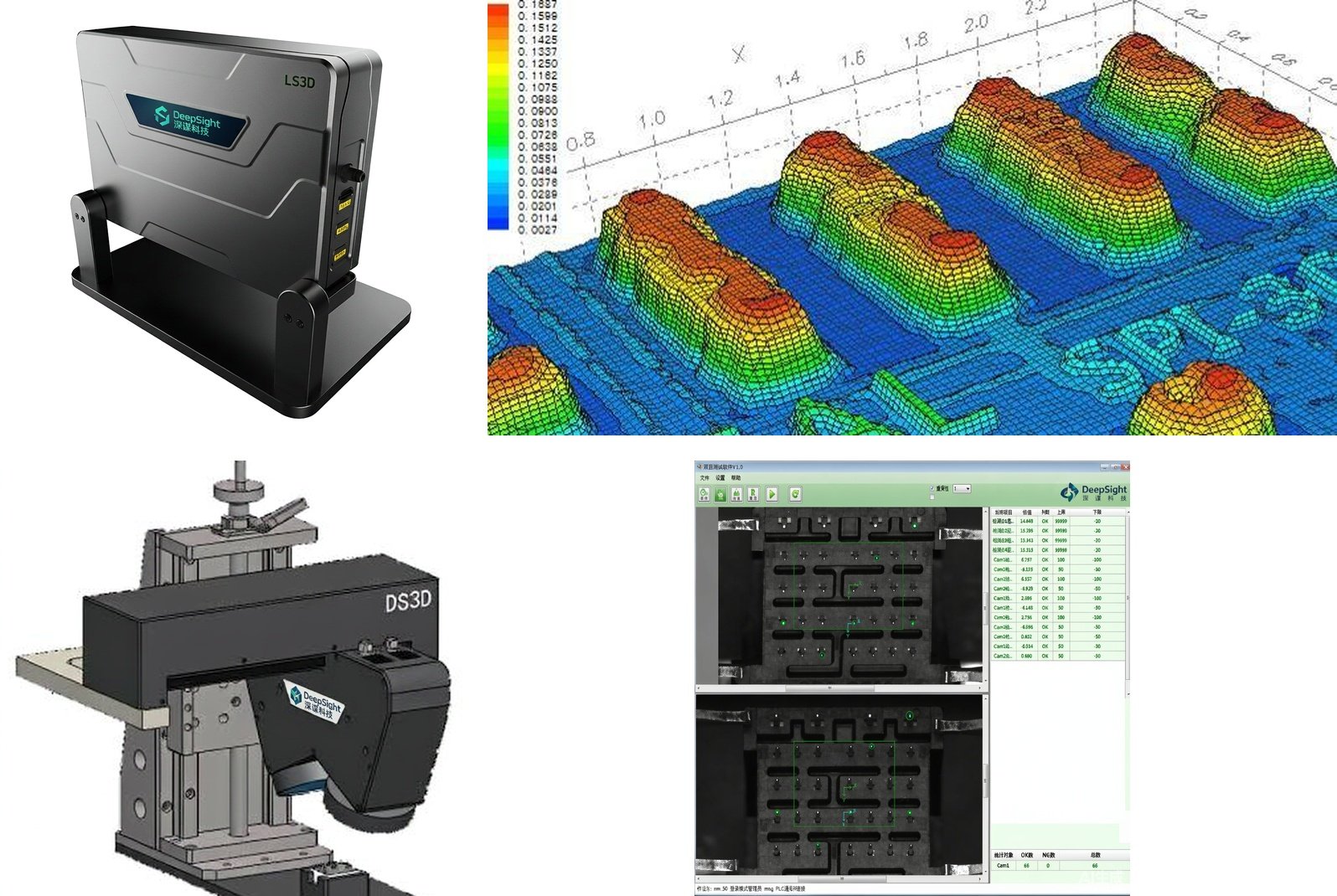

3D Precision Inspection Machines
Product Introduction
DeepSight’s 3D precision inspection line combines the LS3D high-precision 3D scanner and the DS3D binocular 3D inspector. LS3D performs self-contained 3D modeling and captures multi-directional flatness in a single scan with micron-level accuracy. DS3D delivers an industrial all-in-one design with single-lens binocular imaging and fully digital visual control, making 3D component positioning and inspection fast, stable, and easy to deploy.
Key Features
- Self-Contained 3D Modeling: LS3D builds 3D models directly on the device without external workstations.
- One-Scan Multi-Direction Flatness: Captures top, side, and angled surfaces in a single pass.
- Micron-Level Accuracy: Sub-micron height measurement for precision metal, PCB, and assembly inspection.
- Industrial Integrated Design: DS3D packs binocular optics, mechanics, and control into a compact unit.
- Single-Lens Binocular Imaging: Reduces calibration complexity while maintaining 3D triangulation performance.
- Fully Digital Visual Control: Real-time measurement results, pass/fail stats, and SPC-ready data output.

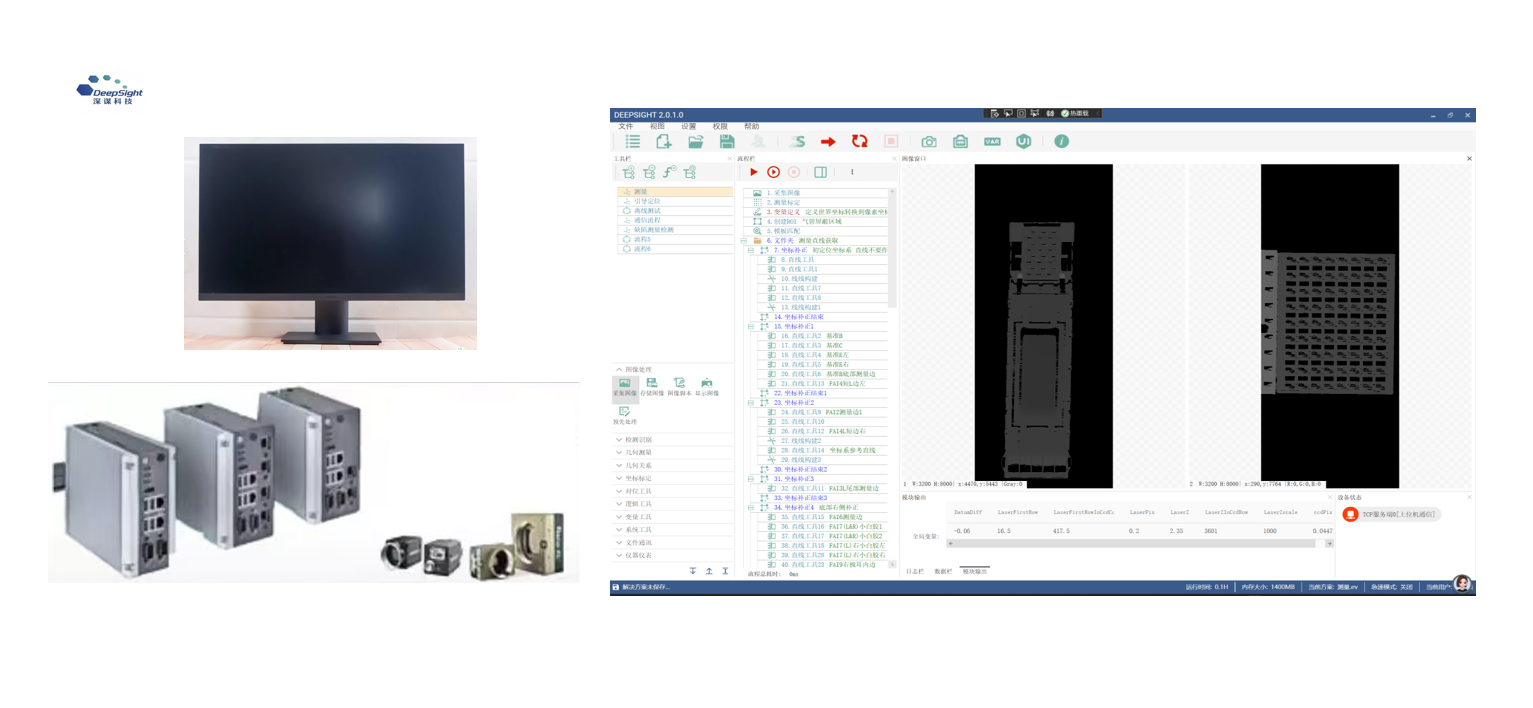

Drag-and-Drop Machine Vision System
Product Introduction
DeepSight offers a comprehensive, standardized Machine Vision System that combines powerful software with high-performance hardware. Featuring a user-friendly, drag-and-drop interface, this system allows engineers to quickly build, configure, and deploy complex visual inspection and measurement applications without writing code. It integrates seamlessly with industrial cameras, lenses, and lighting controllers to deliver reliable, high-speed automated quality control for a wide range of manufacturing processes.
Key Features
- Drag-and-Drop Configuration: Intuitive visual programming interface for fast and easy vision application setup.
- Comprehensive Toolset: Built-in tools for positioning, measurement, defect detection, and OCR/OCV.
- Hardware-Software Integration: Seamlessly compatible with industrial cameras, lenses, and lighting controllers.
- High-Speed Processing: Real-time image acquisition and analysis for inline production environments.
- Flexible Communication: Supports various industrial protocols (TCP/IP, PLC, I/O) for easy integration into automated lines.
- User-Friendly Interface: Designed for quick onboarding, making advanced vision inspection accessible to all operators.
- Versatile Applications: Ideal for electronics, PCB, precision metal, and general manufacturing inspection tasks.

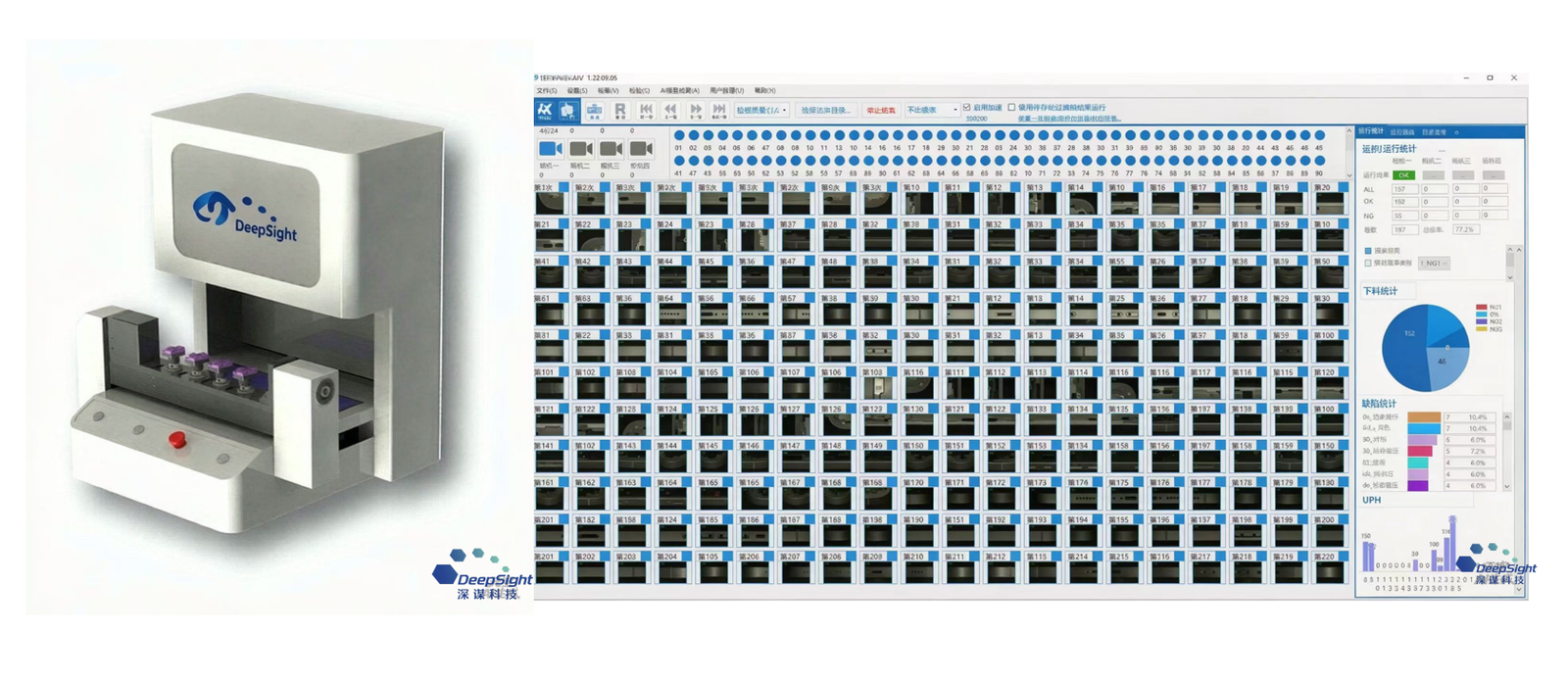

Non-Contact Measurement & Inspection Machine
Product Introduction
The Non-Contact Measurement & Inspection Machine is a high-precision, one-click optical measuring system designed for rapid dimensional inspection and quality control. By combining advanced telecentric optics with intelligent AI-driven software, it delivers micron-level accuracy for complex parts without physical contact. The system automatically identifies, measures, and evaluates multiple features in seconds, making it ideal for high-volume manufacturing environments where speed, precision, and reliability are critical.
Key Features
- One-Click Measurement: Place the part and press a single button to measure hundreds of dimensions instantly.
- High-Precision Telecentric Optics: Ensures accurate, distortion-free measurement with micron-level resolution.
- Non-Contact & Non-Destructive: Ideal for soft, fragile, or highly polished components that cannot be touched.
- AI-Powered Defect Detection: Advanced algorithms automatically identify and classify surface and dimensional defects.
- Comprehensive Data Dashboard: Real-time pass/fail statistics, defect Pareto charts, and UPH tracking for production analysis.
- Flexible Batch Inspection: Supports multi-cavity and array measurement for high-throughput quality control.
- User-Friendly Software: Intuitive interface for quick setup, programming, and reporting without specialized training.

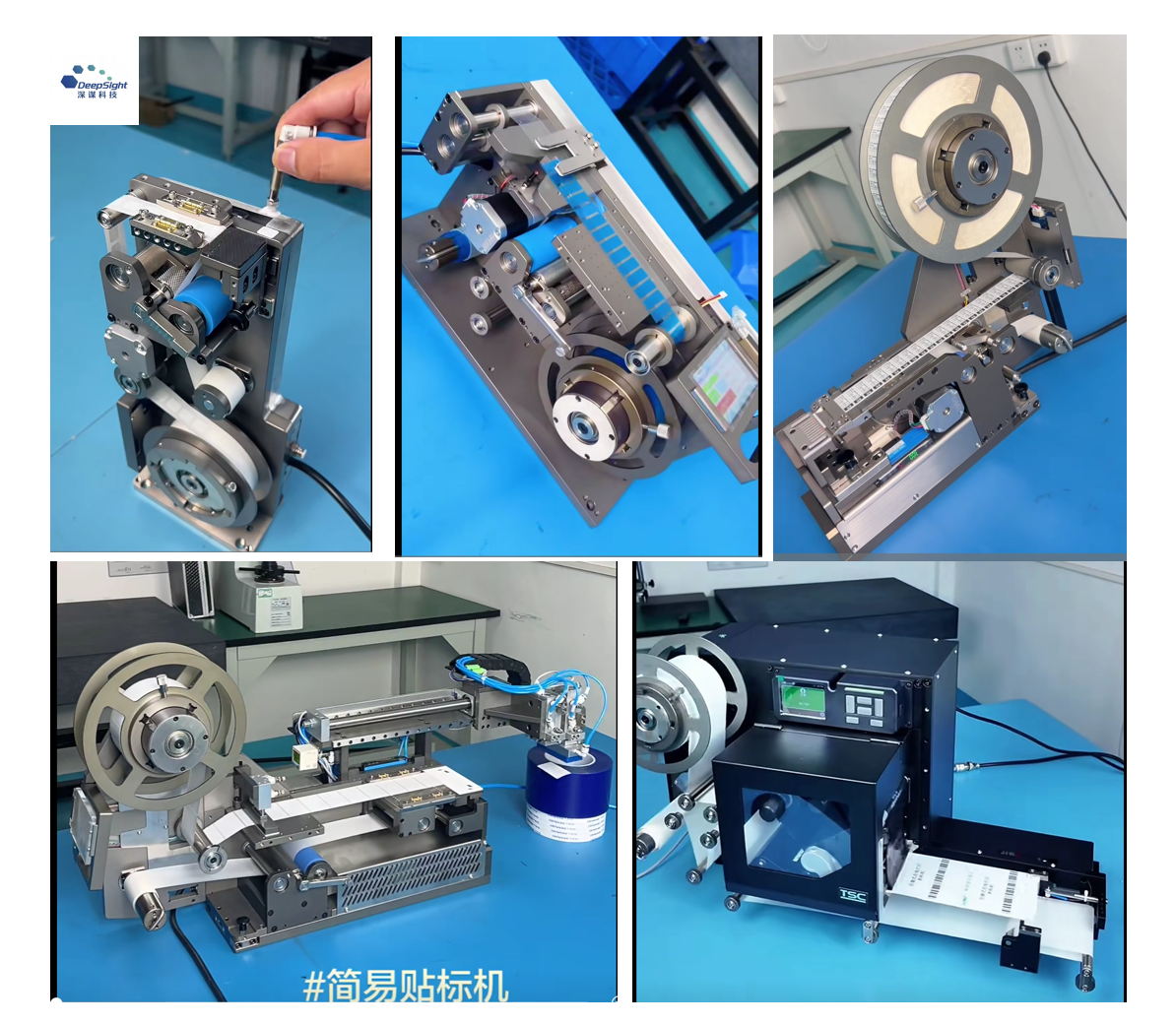

Labeling & Feeding Machine Series
Product Introduction
DeepSight offers a versatile range of automated labeling and feeding modules designed for flexible integration into production lines. From simple manual label dispensers to fully automated print-and-apply systems, our solutions are built with high-precision mechanical components and reliable pneumatic controls. Whether you need to feed small parts, peel labels, or integrate a compact TSC printer module, these machines deliver stable performance and easy deployment for a wide range of industrial applications.
Key Features
- Modular & Compact Design: Small footprint, easy to integrate into existing automated production lines.
- Precision Feeding Mechanism: Smooth and accurate material feeding using high-quality rollers and tension control.
- Automatic Label Peeling: Reliable label dispensing and peeling for various label sizes and materials.
- Print & Apply Integration: Compatible with industrial thermal printers (e.g., TSC) for on-demand label printing and application.
- Flexible Pneumatic Control: Equipped with precision air cylinders and sensors for accurate pick-and-place operations.
- Versatile Applications: Suitable for electronics, PCB, FPC, and general small-component labeling and feeding.
- Easy Operation & Maintenance: User-friendly design with straightforward threading and quick-change adjustments.

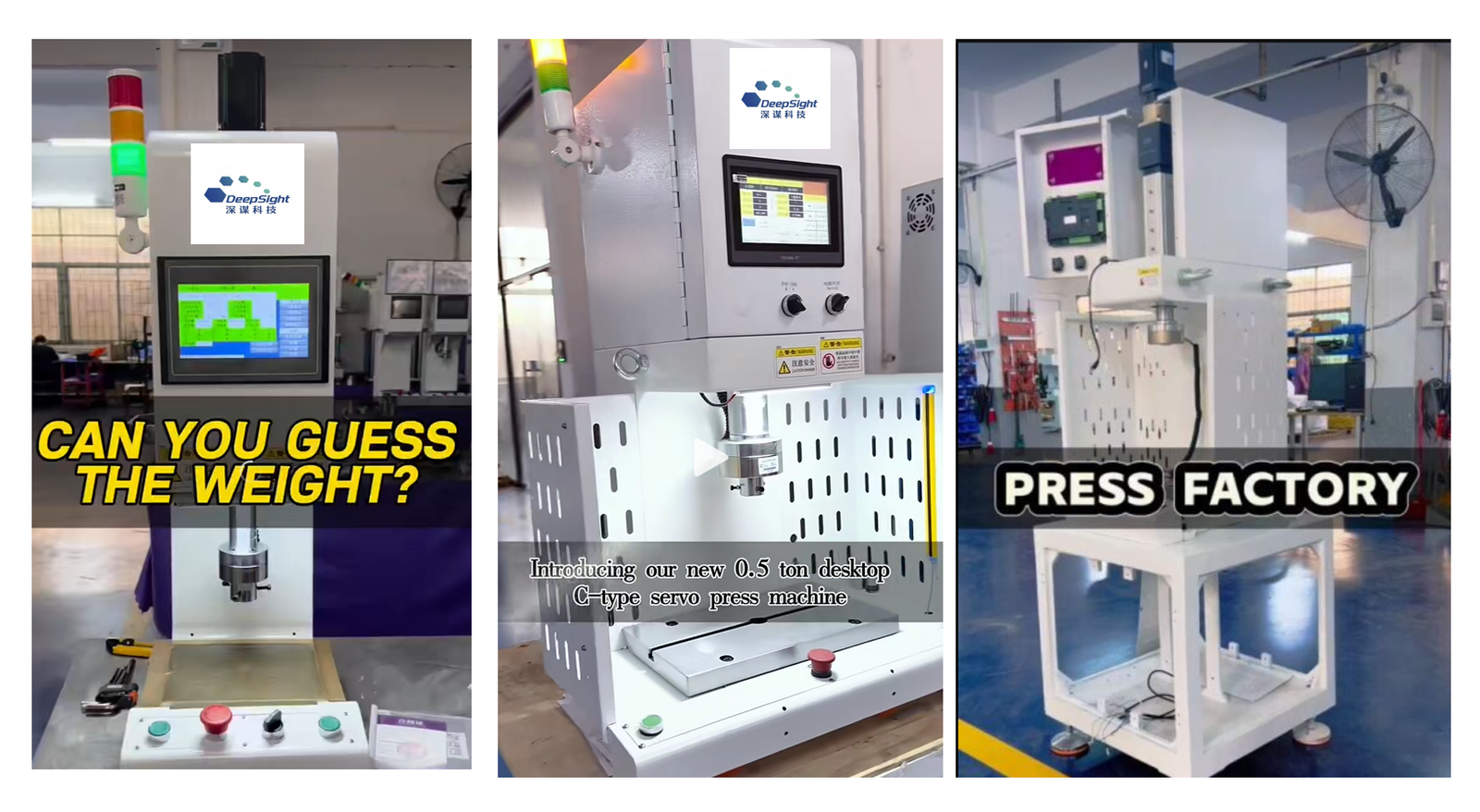

Desktop C-Type Servo Press Machine
Product Introduction
The 0.5-ton Desktop C-Type Servo Press Machine is a compact, high-precision industrial solution designed for smart manufacturing and factory automation. Unlike traditional pneumatic or hydraulic presses, this servo-driven system offers fully programmable force, speed, and position control. It is ideal for precise press-fitting, stamping, riveting, and assembly tasks in electronics, automotive, and precision engineering applications. Its user-friendly touchscreen interface makes it a perfect fit for Industry 4.0 environments.
Key Features
- 0.5-Ton Precision Pressing: Compact C-type frame designed for desktop use with high-precision output.
- Servo-Driven Control: Programmable force, speed, and position for consistent and repeatable results.
- Intelligent Touchscreen Interface: Easy-to-use HMI for real-time monitoring, parameter setting, and data tracking.
- High Rigidity & Stability: Robust mechanical structure minimizes deflection during high-precision operations.
- Safety & Reliability: Equipped with safety light curtains, emergency stop, and dual-hand control for safe operation.
- Industry 4.0 Ready: Supports data output and integration for smart manufacturing and quality control systems.
- Versatile Applications: Ideal for press-fitting, riveting, punching, and assembly of small precision components.

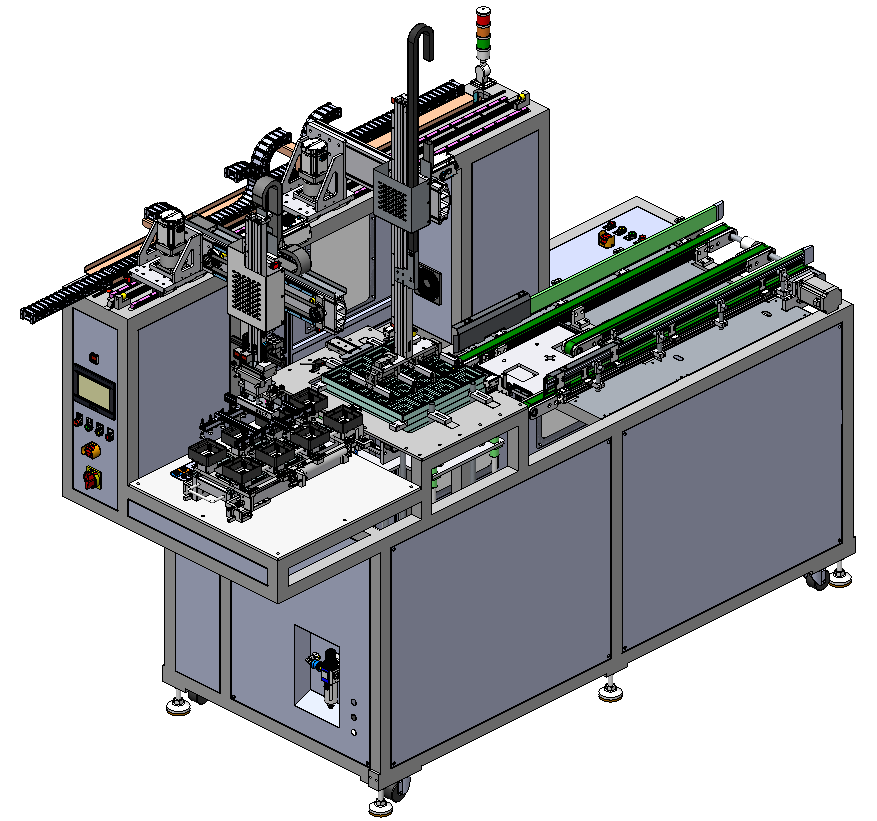

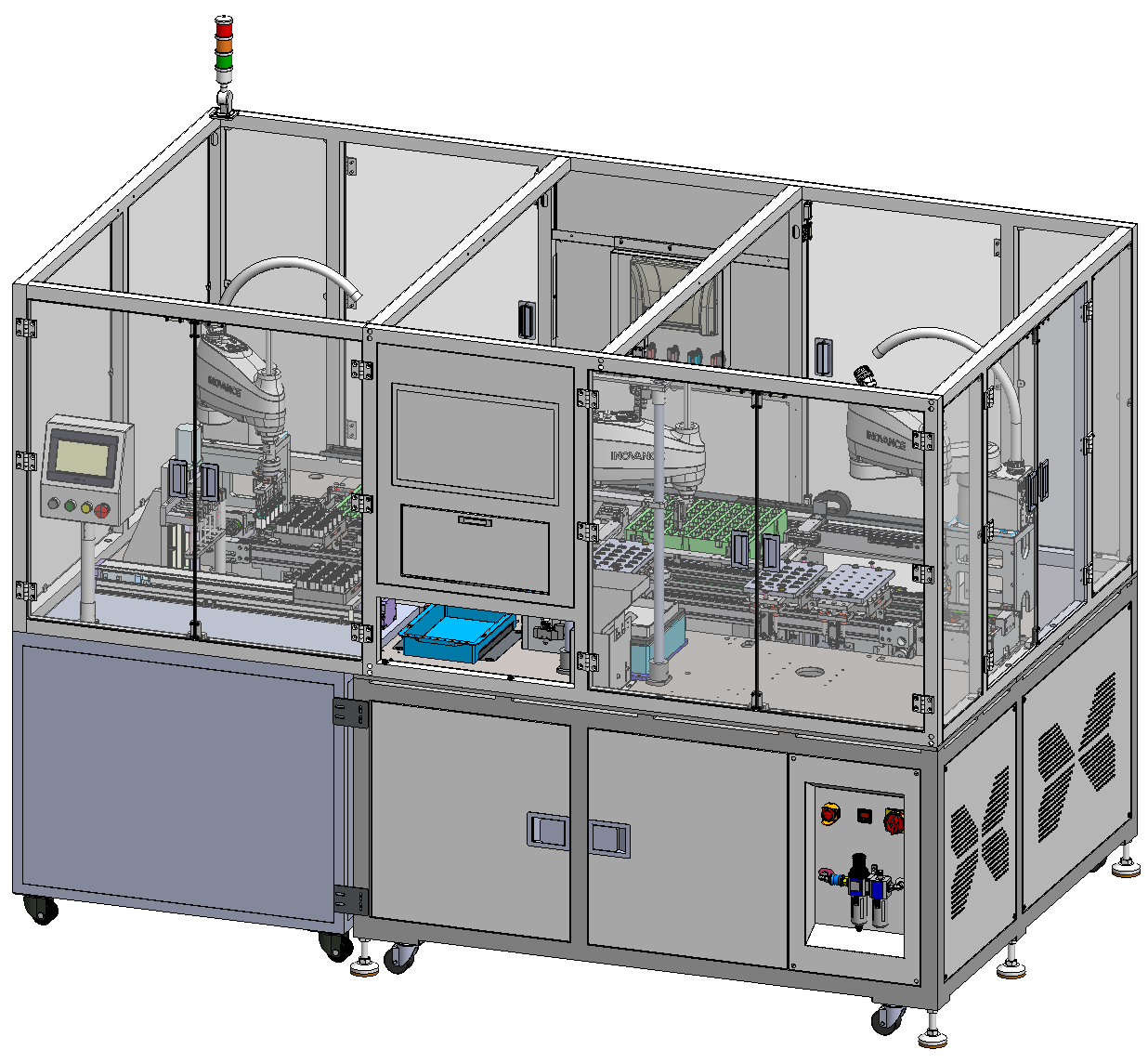

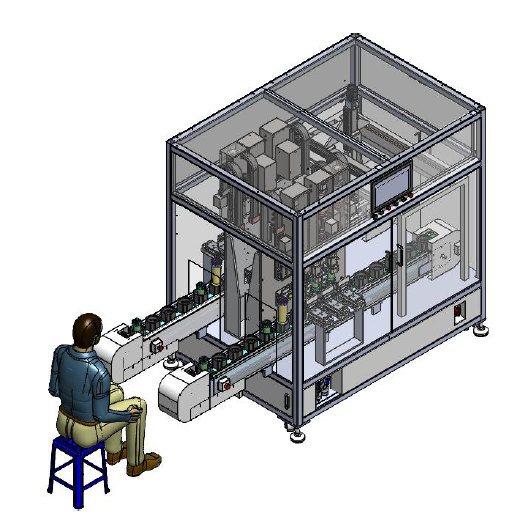

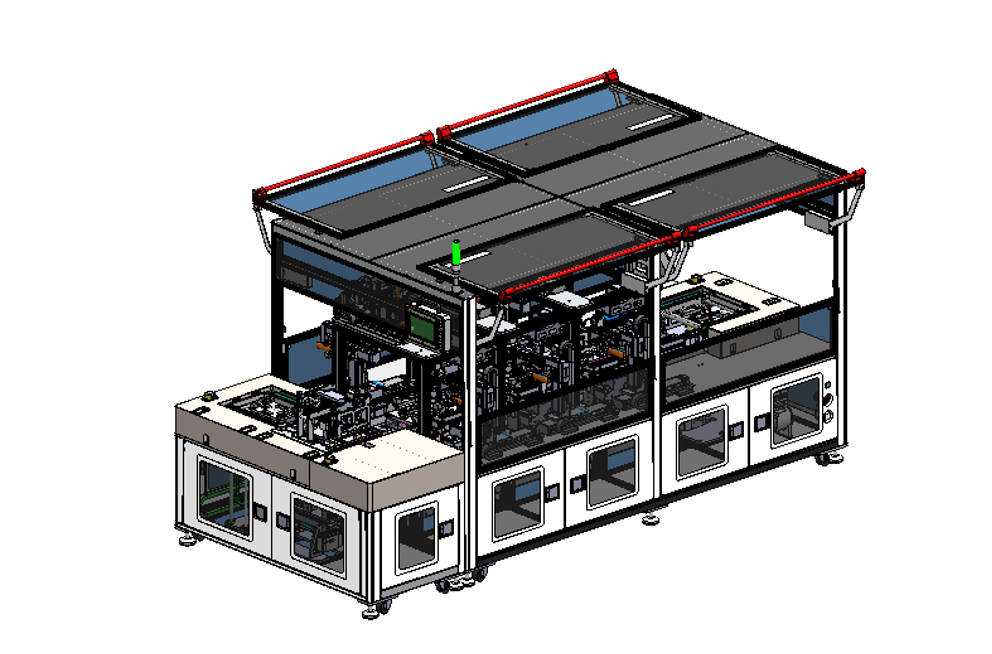

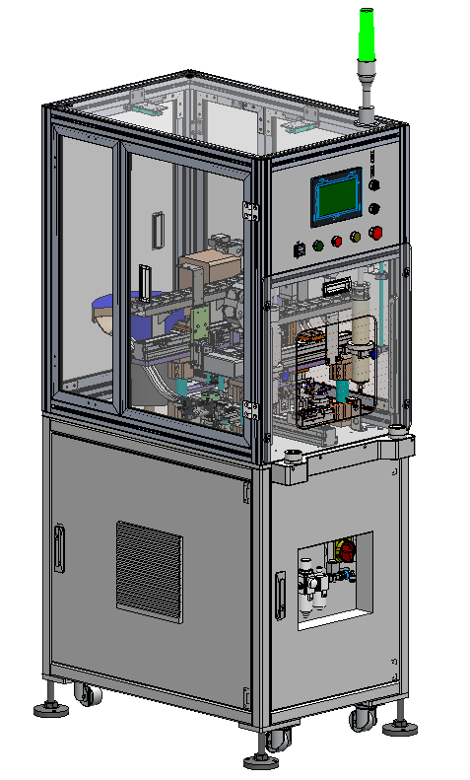

More Automation Assembly Equipment Cases
Customized solutions for diverse manufacturing processes.
